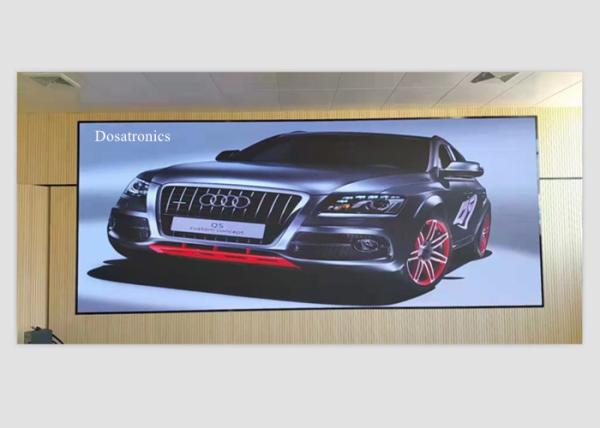

IP30 800cd/M2 Indoor Full Color LED Screen P1.8mm LINSN Control System

  • 1
  • 2
  • 3

Brand Name : Dosatronics

Model Number : DS-AIF-P2

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : T/T; WU, LC

Supply Ability : 3,000M2 per month

Delivery Time : 20 working days after received your payment

Packaging Details : Packed in carton or Flight case

Product Name : Indoor P1.8mm LED Display

Application : indoor

Size Of Panel : 640mm*480mm

Resolution : 344*258

Brightness : Over 800cd/m2

Feature : HD, High refresh rate

Standard : CE/ROHS/FCC/SGS

type : Video

Contact Now

High Definition 288,907 pixels / m2 Indoor P1.8mm LED Screen 640*480mm


1. Description:


Dosatronics LED displays are high tech product with our own patent. Both outdoor or indoor LED display for advertising has high brightness, high contrast, high refresh rate…All are popular both in domestic and overseas market. We adopt unbeatable product stability through strict Quality Control System. It is very correct for you to choose our company, our LED display products. All of them has 3 years quality warranty since all component are extremely good. They can bring you large fortune in a very short time.


2. Quick Detail:


(1) Indoor SMD P1.8 fine pitch LED screen
(2) High definition

(3) Light weight and slim design

(4) 320*160mm Module Size

(5) High refresh rate




3. Applications:

Our Full Color SMD indoor P1.8mm LED Display is mainly for indoor HD video wall usage, such as commercial advertising, conference, mobile media, night club, entertainment events, business establishments, can install in banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio, shopping, malls, railways, airports, harbors, etc.


4. Specifications:


Model No.

DS-AIF-P1.8

Pixel Pitch

1.8mm

Module Size

320*160mm

Module Resolution(pixels)

32*32

Cabinet Size

640mm×480mm

Panel Resolution(pixels)

172×86

Pixel Configuration(RGB)

SMD 3 in 1

Pixel Density(pixels/㎡)

250,000

Brightness(cd/㎡)

800

Best Viewing Distance(m)

1-30

Average Power Consumption(W/㎡)

300

Waterproof Level

IP30

Drive Method

1/32scan

LED SPEC

2121

Viewing Angle

140°(H)/140°(V)

Operating Temperature

–40~100

Video Frame Rate(Hz)

≥ 60HZ

Display Refresh Rate(Hz)

≥ 3840HZ

Grey Level(colors)

16.7million

MTBF

≥50,000 hours

Lifespan

≥100,000Hours

Working Voltage

220V±15% OR 110V±15%

Wavelength

R 620-625 G 520-525 B 470-475

Graphics Card

DVI Graphics card

Video Signal

RF, S-Video, RGB, RGBHV, YUV, YC, etc.

Control System

LINSN

Software

LED studio 10.0

Installation

Wall mount, hung and stand structure


5. Methods for Quality Assurance

a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level

b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range



6. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.



7. Package

Carton. Fumigation-Free wooden case or Flight case



8. Control System Connection

LED Controls system



9. Our products have three unique advantagess

(1) Our module shell is aluminum,other companies are plastic.so it is lighter and thinner.

(2) Our module have strong waterproof and heat-dissipation, the module can work in the water of 100 degrees or
40 degrees blow zero environment.

(3) Display can work under extremely cold ,heat,humidity and other extreme environments.
